  2. Tridonic LC 18W 24V SC SNC SR 24V Constant Voltage LED Driver F+P

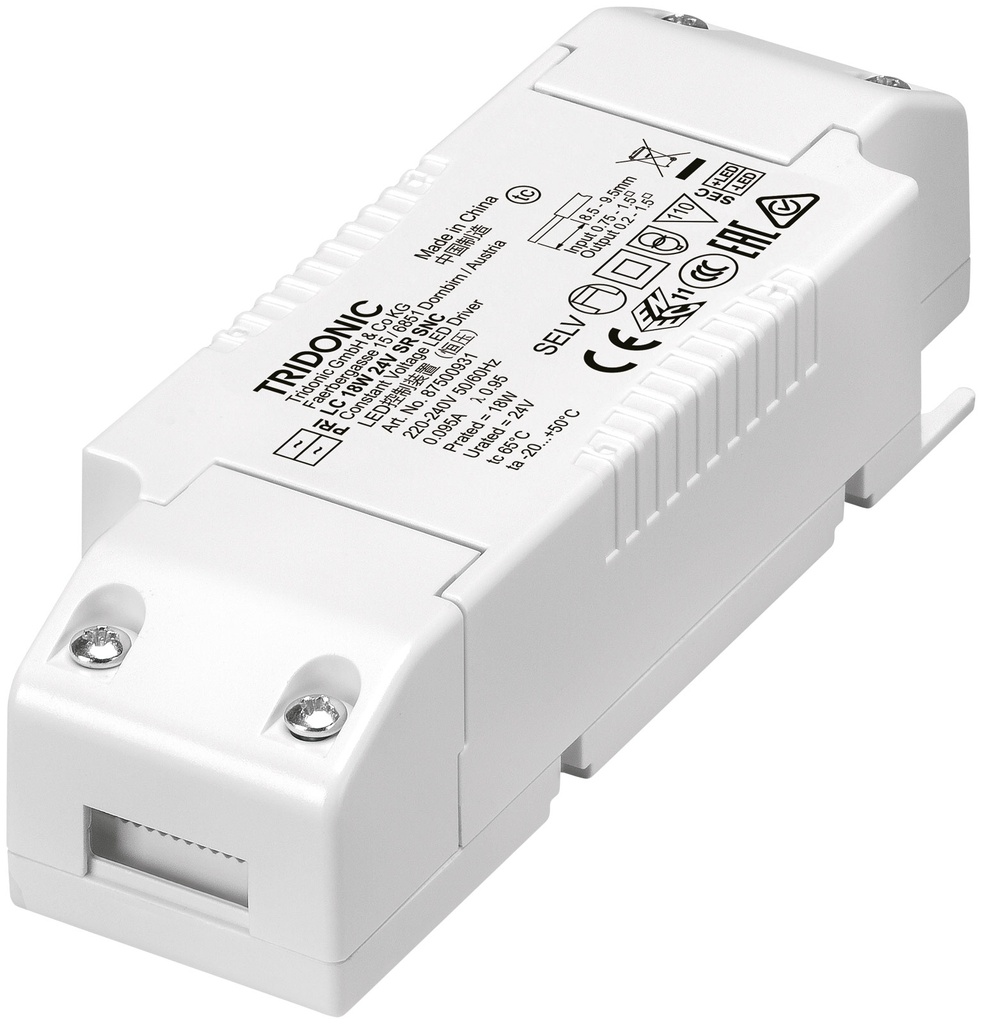

Tridonic LC 18W 24V SC SNC SR 24V Constant Voltage LED Driver F+P

https://www.solsticelighting.com.au/web/image/product.template/31/image_1920?unique=27fbb2c

LC 18W 24V SR SNC, 24 mA, 50,000 hrs, IP20 F+P

$ 45.34 45.34 AUD $ 45.34 GST Included

$ 41.22 GST Included

Not Available For Sale

This combination does not exist.

Contact Us

Shipping: 2-3 Business Days

Rated supply voltage 220 – 240 V
AC voltage range 198 – 264 V
Mains frequency 50 / 60 Hz
Overvoltage protection 320 V AC, 1 h
Typ. rated current (at 230 V, 50 Hz, full load) (1) 95 mA
Typ. input current in no-load operation 25 mA
In-rush current (peak / duration) 8 A / 350 µs
Max. input power 22 W
Typ. input power in no-load operation 0.3 W
Typ. efficiency (at 230 V, 50 Hz, full load) 86 %
λ (at 230 V, 50 Hz, full load) (1) 0.95
THD (at 230 V, 50 Hz, full load) (1) < 10 %
Starting time (at 230 V, 50 Hz, full load) (1) < 0.5 s
Turn off time (at 230 V, 50 Hz, full load) < 0.2 s
Hold on time at power failure (output) 0 s
Output voltage tolerance ± 1 V
Output LF voltage ripple (< 120 Hz) ± 1.5 %
Output P_ST_LM (at full load) ≤ 1
Output SVM (at full load) ≤ 0.4
Max. output voltage (U-OUT) 25 V
Mains surge capability (between L - N) 1 kV
Mains surge capability (between L/N - PE) 2 kV
Burst capability 1 kV
Type of protection IP20
Length 127 mm
Width 43 mm
Height 30 mm
Lifetime up to 50000 h
Guarantee 5 years
